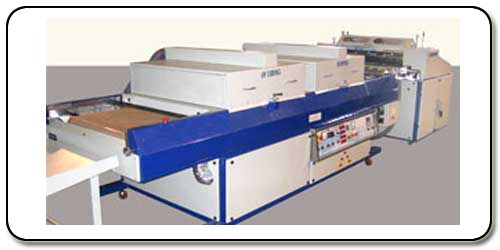

ROLLER COATER AND CURING MACHINE

We manufacture triple roll coaters for coating of board stock and for paper stock with UV varnish, also roller coater to coat aqueous varnish on board stock. So, the same coater can be used as a UV coater as well as an aqueous varnish coater. It is a very efficient machine, easy to use and good for full or flood coating as well as strip coating. See below some of the common roller coaters.

Roller coater and curing – for board*

Model	Power (UV mode)	Power (IR mode)	No. of Lamps	Floor space	Max. sheet width
UVIRCC-24	12KW	14KW	1-UV,3-IR	5m x 1.4m	24” or 600mm
UVIRCC-30	13KW	16KW	1-UV,3-IR	5m x 1.4m	30” or 750mm
UVIRCC-40	24KW	20KW	2-UV,3-IR	5m x 1.6m	40” or 1000mm

Roller coater and curing - for paper ( only UV) and board*

Model	Power (UV mode)	Power (IR mode)	No. of Lamps	Floor space	Max. sheet width
UVIRCC-24TS	14KW	14KW	1-UV,3-IR	5m x 1.4m	24” or 600mm
UVIRCC-30TS	15KW	16KW	1-UV,3-IR	5m x 1.4m	30” or 750mm
UVIRCC-40TS	26KW	20KW	2-UV,3-IR	5m x 1.6m	40” or 1000mm

Note: Additional power of 5HP is used for compressor for paper air knife system.
